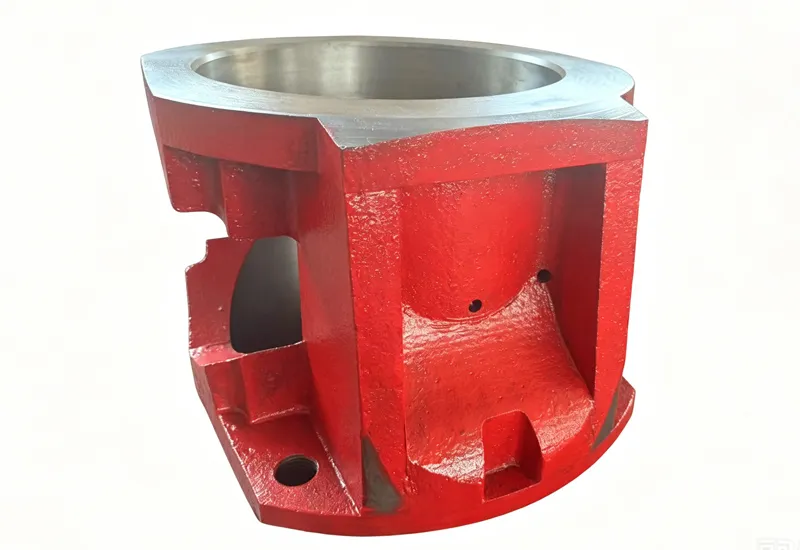

Product Introduction: Guide Tube Guide tube is a precision positioning and protection component widely equipped on triplex mud pumps, sprinkler pumps, hydraulic tools and valve assemblies, mainly used to limit the linear movement path of piston rods, extension rods and valve parts, and play a role in wear resistance, sand isolation and auxiliary sealing. Material & Manufacturing Made of high-strength alloy steel, copper alloy or wear-resistant bimetallic material. The inner hole undergoes precision honing to form a smooth low-friction surface; the outer wall is machined with positioning steps and sealing grooves. The surface can be hard chrome-plated or carburized and quenched to enhance anti-scuffing and anti-sand erosion performance under long-term contact with drilling mud. Main Classification & Application 1. Fluid end piston rod guide tube Installed inside stuffing box, matched with extension rod and piston rod. It keeps the rod running concentrically, reduces friction with packing sealing rings, blocks sand particles from entering the stuffing box gap, and lowers the abrasion speed of packing and rod surface. 2. Valve assembly guide tube Sleeved outside valve springs and valve bodies, restricts vertical movement of valve discs, prevents valve deflection and jamming under high-pressure slurry impact, and ensures smooth opening and closing of suction/discharge valves. 3. Hydraulic tool guide tube Used on hydraulic valve extractor assemblies, provides positioning support for pulling shafts, avoids offset pulling force, and protects valve seat inner walls from scratch damage during disassembly. Core Performance Features 1. High coaxial precision: Strict dimensional tolerance eliminates radial shaking of moving parts, effectively reducing eccentric wear of liners, pistons and sealing components. 2. Built-in oil storage grooves: Retain lubricating oil to form a continuous oil film, avoid dry friction and metal biting. 3. Anti-blockage smooth inner channel: No dead corners for mud deposition, adapt to high-solid-content abrasive drilling fluid working conditions. 4. Standard modular size: Strong interchangeability with mainstream mud pump fluid end accessories, easy independent disassembly and replacement without removing the whole pump body. Working Value It stabilizes the linear motion of key moving parts, slows down the wear rate of vulnerable consumables, reduces mud leakage and valve failure frequency, and cuts long-term operation and maintenance costs. It is an essential auxiliary positioning protective part to guarantee stable pressure and flow output of mud pump and related hydraulic equipment.
